MJT (Multi JIG Teter)

JIG for PlatingMeasuring equipment

Off line type / In line type

Application

- HDI.PKG ,FPCB

- Custommization Available: Board Size, Thickness, Lay-out, Capacity, etc

Specification

- Measurable point

Measurable point Clamp Current JIG Warp (Twist & Angle) Adjust pressure Moving pressure

- Operating option

In Line : Include JIG Input & Output in the main equipment
Include OK / NG Automatic take out NG JIG / Insert replacement JIG Separate Unit : Manual Input & Output

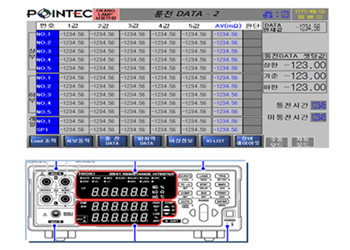

Measure & Data gathering

- etc

MODBUS communication RFID reader
