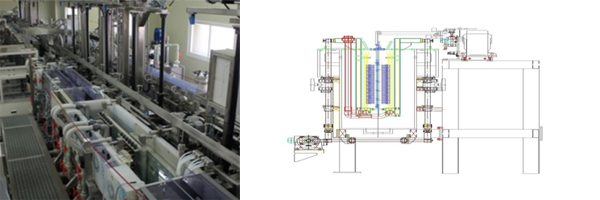

PCCP (VCP) Series - PTH (Electoless Plating Line)

VCP Type PTH Plating Equipment

MSAP,Coreless of PCB Production

Application

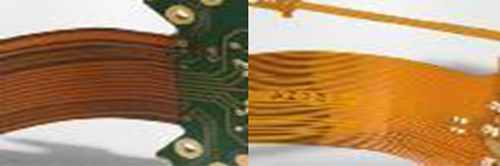

- PKG : SlimPTH Plating

- Material Thickness : Min 0.04mm ~ Max 1.0mm (Cu Foil : Coreless ~ )

- Custommization Available: Board Size, Thickness, Lay-out, Capacity, etc

Specification

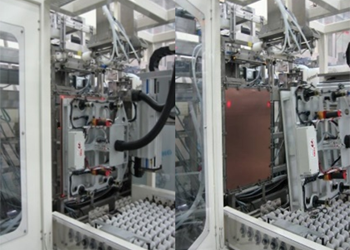

- Auto Loading / Unloading System

- Completion development of Jig for Slim sheet min thickness 40㎛

- Increase eductor nozzle for best uniformity quality

- Available In-Line Process from Loading to Unloading
